Deye 5kw LV Single Phase Inverter

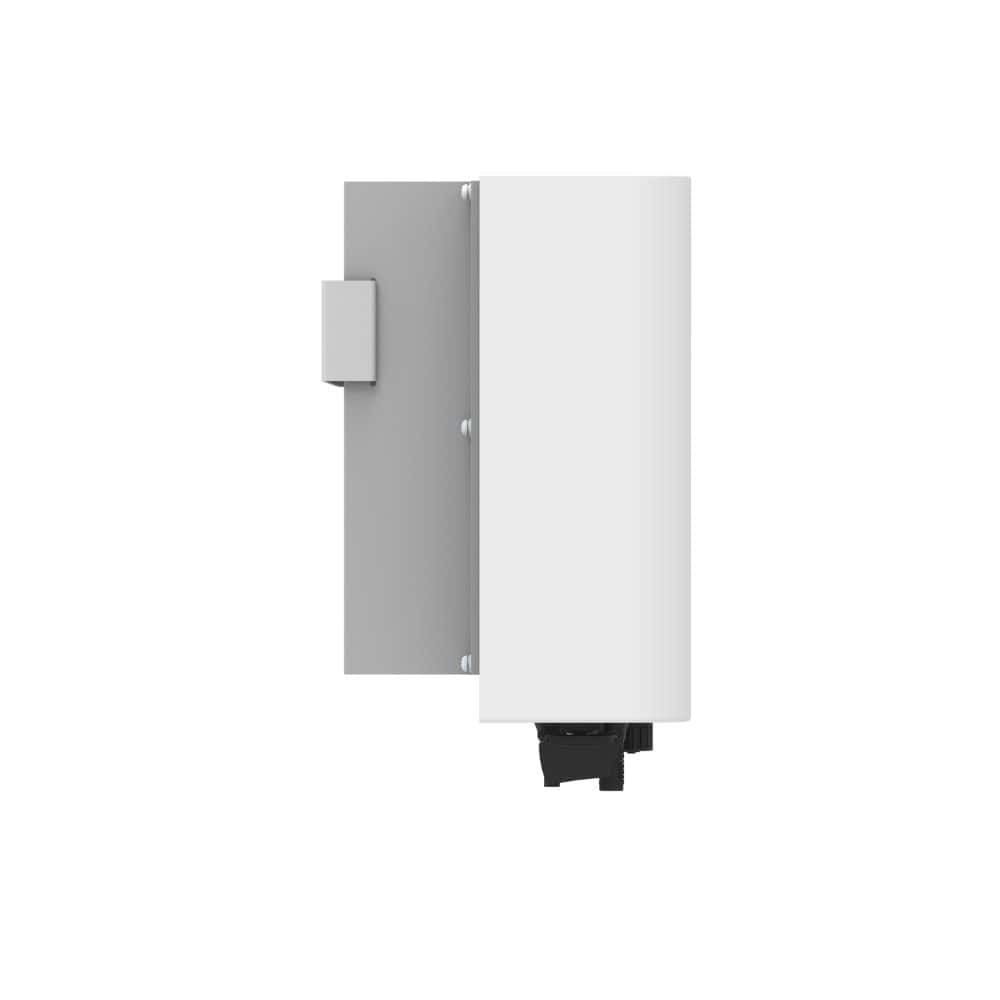

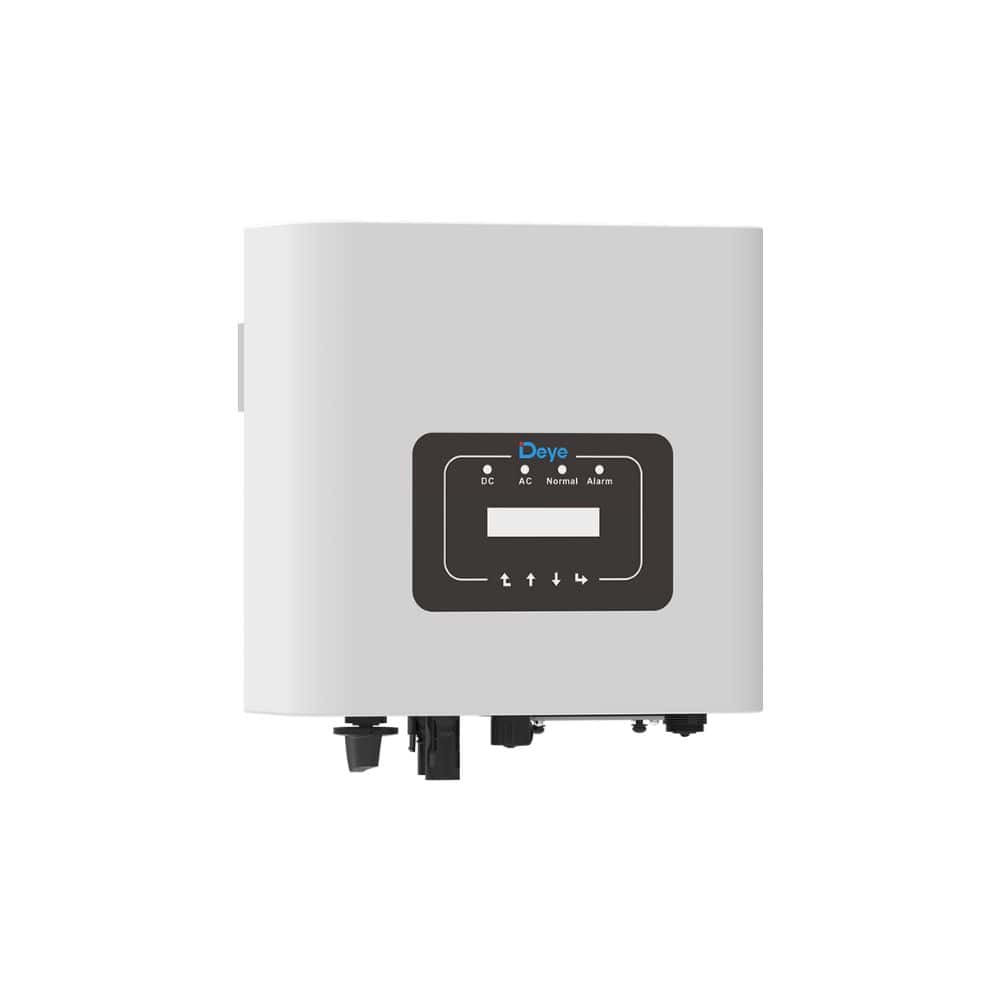

The Deye SUN-(1-4)K-G04P1-EU-SM2 is a single-phase string inverter designed for residential and commercial solar PV systems. This inverter boasts high efficiency, versatile functionality, and robust protection for a reliable and optimized energy generation solution.

• Colorful touch LCD, IP65 protection degree

• AC couple to retrofit existing solar system

• Max. 16 pcs parallel for on-grid and off-grid

  operation; Support multiple batteries parallel

• Max. charging/discharging current of 140A

• 6 time periods for battery charging/discharging

• Support storing energy from diesel generator

Description

Key Features

• High Efficiency: Achieves a maximum efficiency of up to 97.5% with a single MPPT tracker.

• Low Start-up Voltage: Starts up at a low voltage of 80V, enabling optimal performance even in low-light conditions.

• Zero Export Application: Supports zero export functionality, allowing you to manage your energy consumption and maximize self-consumption.

• VSG Application: Enables voltage support capabilities, contributing to grid stability.

• String Intelligent Monitoring: Offers optional string intelligent monitoring for enhanced system diagnostics.

• Wide Output Voltage Range: Provides flexible output voltage for compatibility with various grid configurations.

• Anti-PID Function: Optional anti-PID function helps prevent power degradation caused by PID phenomenon in PV modules.

• Comprehensive Protection: Includes DC polarity reverse connection protection, AC output overcurrent/overvoltage protection, short-circuit protection, thermal protection, and surge protection.

• Monitoring & Communication: Supports various communication interfaces, including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232, and monitoring modes.

General Data

• Inverter Topology: Non-Isolated

• Cabinet Size: 280×310×184 mm (excluding connectors and brackets)

• Weight: 6.35 kg

• Cooling Type: Natural Cooling

• Warranty: 5 Years

Standards & Certifications

• Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105

• EMC/Safety: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

• Ingress Protection Rating: IP 65

The Deye SUN-(1-4)K-G04P1-EU-AM1 is a reliable and feature-rich inverter for residential and commercial solar PV installations. It offers high efficiency, versatile functionality, and robust protection for a secure and optimized energy generation solution.
